Oven Not Heating? How to Test and Replace a Fan Element

Gemini said

⚠️ STOP: Safety First!

Before you touch a single screw on your cooker, you must follow these life-saving rules. Electric ovens carry enough current to be fatal.

1. Isolate the Power: Turning the oven knob to "Off" is not enough. You must switch the cooker off at the large red wall switch (the 45-amp cooker point) or unplug it completely.

2. The "Dead" Test: Even after switching off, use your multimeter or a non-contact voltage tester to verify there is zero voltage at the terminals.

3. Watch the Edges: Oven internal panels are often razor-sharp. Wear cut-resistant gloves when reaching into the back of the appliance.

4. Capacitor Warning: If you are working on a microwave-oven combo, be aware that high-voltage capacitors can hold a lethal charge for days after being unplugged. Do not touch the HV circuit unless you know how to discharge it.

Is your oven fan spinning but the air stays cold? That’s the classic sign of a blown circular fan element. While it might look intimidating, you can replace this yourself without even taking the oven out of the wall in some models—though this specific guide shows you how to do it properly by accessing the rear for a 100% safe connection.

---

The "Math" of a Good Element

You don't just have to guess if an element is bad. You can use Ohm's Law to prove it.

• The Formula: (Voltage × Voltage) / Resistance = Wattage.

• The UK Example: 230V² (52,900) divided by a typical resistance of 25.9Ω gives you exactly 2,000 Watts (2kW).

• The Fault: If your multimeter shows "OL" or a reading in the millions, the internal wire has snapped. It's dead.

---

Step-by-Step Replacement

1. Safety First: Isolate the power. Never work on a live cooker.

2. Rear Access: Remove the back cover to disconnect the wires. Top Tip: Label them or take a photo so you don't swap the live and neutral (though on an element, it matters less, it’s good practice).

3. Inside the Oven: Remove the back fan cover (usually 2 or 4 screws).

4. The Swap: Unscrew the element from the back panel of the oven cavity. It should pull forward easily.

5. Installation: Slide the new element in, ensuring the terminals go through the holes to the back. Screw it in tight to ensure a good "Earth" connection to the chassis.

6. Reconnect: Back at the rear, push the spade connectors firmly onto the new terminals.

Buy cooker and oven spares from Ebay UK here

Buy a good Multimeter here on Ebay UK

identify the correct cables and remove connectors

now connectors are removed set the multmeter to ohms

and connect multimeter probes to terminals

my reading is 25.9 this is a perfect reading for a 2kw cooker oven element

Buy Multimeter here

Ill carry on a replace this anyway to show you the steps your may differ slightly

but the principles are the same

remove the fan and element cover

then undo the electric element retaining screws

and the element should pull away easily

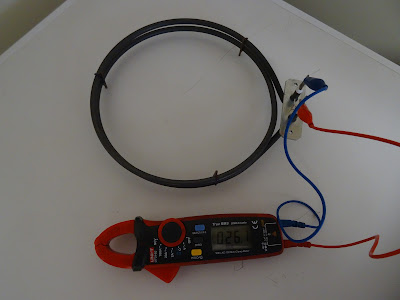

here i test the element again outside the oven its 26.1 now

but these meters are not always exact so its still a good reading

now replace the new element

screw in both retaining screws

make sure the fan is central to the element and tighten

and finally refit the our fan / element cover

and then refit the electric connections to the rear of the element

exactly as you found them
