How to remove and refit oven cooker door - common issues - glass handles and hinge replacement

It can be different on some models but this seem to be the most popular way to fit oven door for easy removal for service and cleaning.

You need to open door fully pull back the retaining clips or locking tabs and then close door until the hinge becomes free in body it should then just pull free.

Buy cooker and oven spares from Ebay UK here

Buy a good Multimeter here on Ebay UK

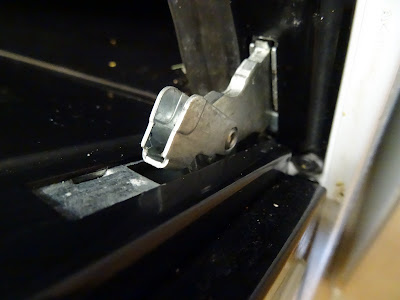

open door to access the hinge locking tabs

open up locking tabs fully on both hinge sides

now close door so it free hinge and door should pull free

Now replace in reverse order push hinges into mounting holes

Close locking tabs and then open and close door a few times to ensure everything is safe

See video of this process below

The next video is for the bottom lower cooker oven

Next video is a strip down video of lower door catch replacements etc

The door on a cooker or oven keeps the heat in the cooking space and it can be used to view the food being cooked. it consists of a few parts the glass the door seal the handle and the hinges as shown above.

The door can be held closed by either a catch or the door hinges spring loaded to keep the door shut tight.

There is usually 2 sheets of glass but there can be up to 5 sheets these create  thermal barrier , the first glass sealing against the rubber seal then one or more layer with an air gap between them to insulate the operator from touching hot glass as much as possible. This arrangement should be design for easy dismantling to allow for cleaning.

Possible issues with the door

Obviously its glass so care should be taken to ensure its not damaged as later heat cycling can cause the glass to explode spectacularly.

The glass mounts in the door can be damaged and not allow the correct assembly of the glass.( sometimes these clips can be bought )

The hinges can become damaged and or warped or just wear out over time which can lead to the door falling off but replacements can be bought.

Some oven doors are spring loaded other have a catch these can wear or become damaged and will need replacing.

A typical latch above and spring below

On some cooker / oven doors the glass will be glued in place this is the glue i use and never failed, it does take 24 hours to cure so beware of this. Buy this glue from here

See video below about door removal, glass, handle and hinges repair replacement.
